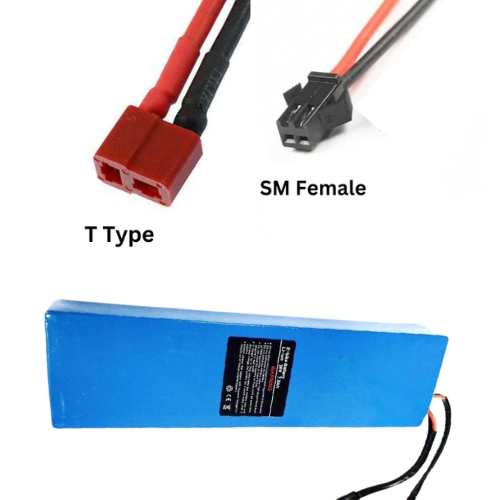

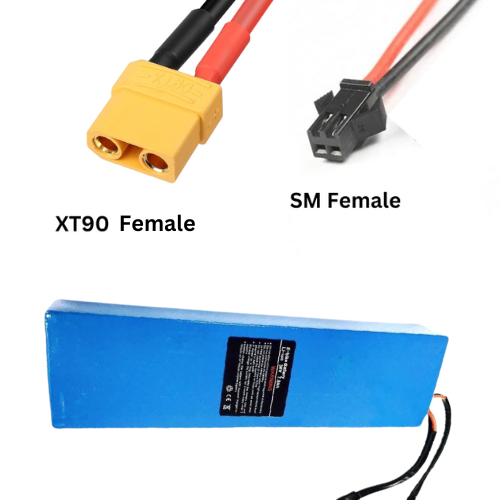

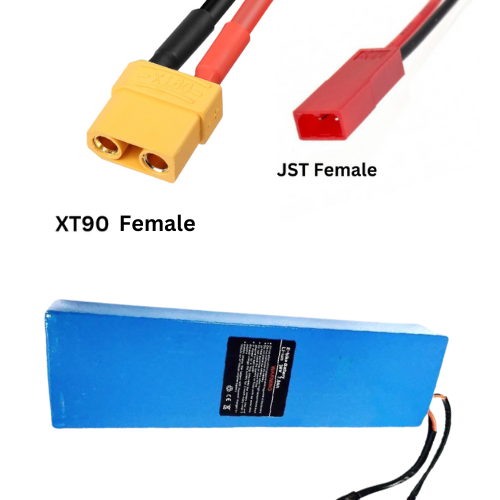

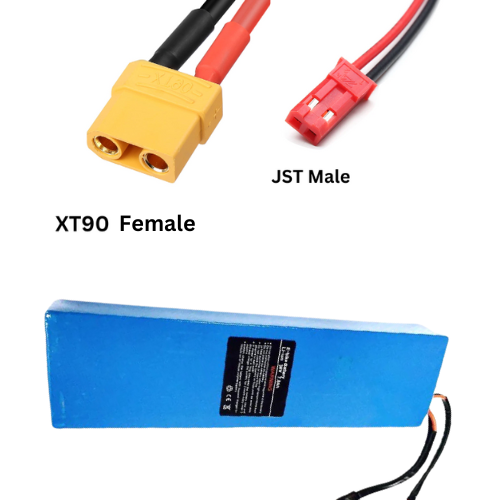

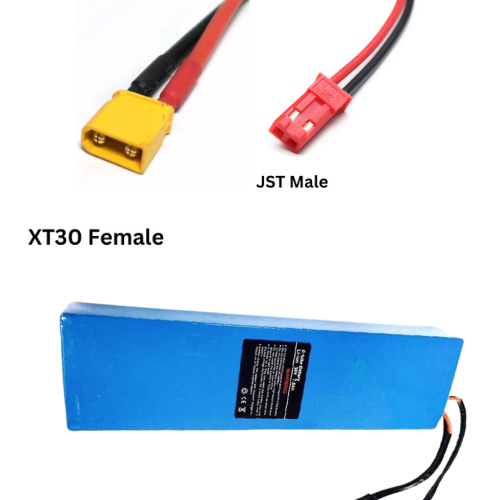

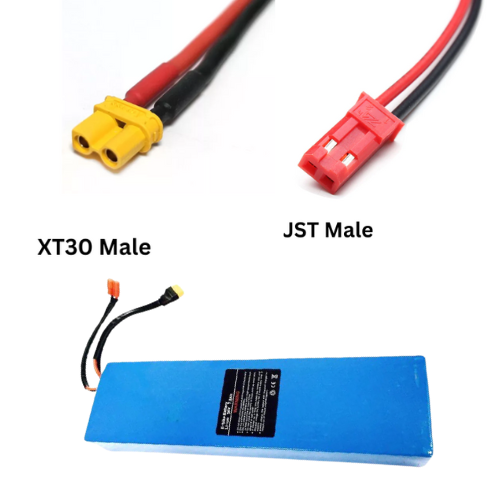

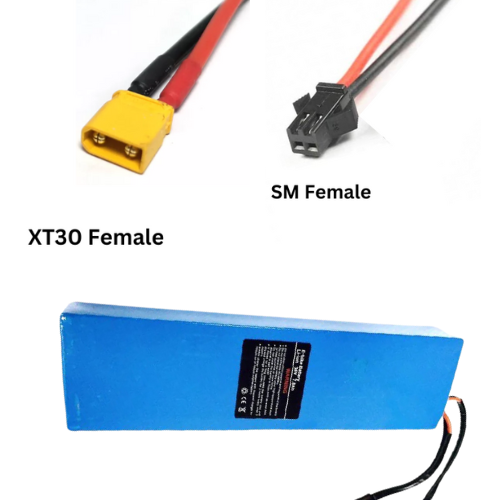

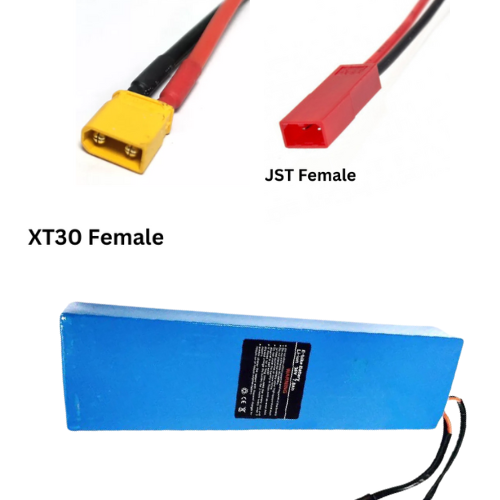

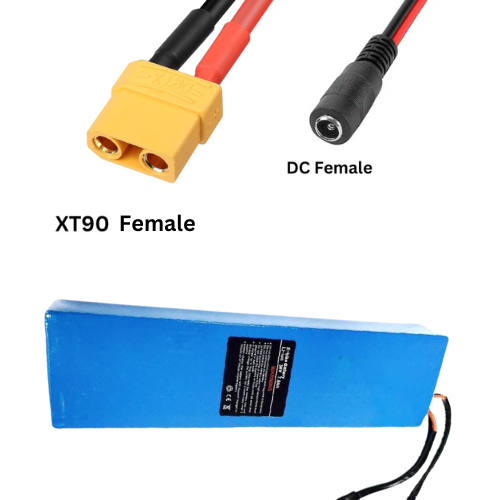

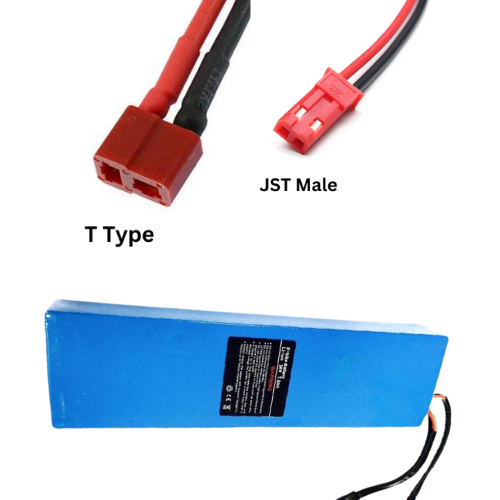

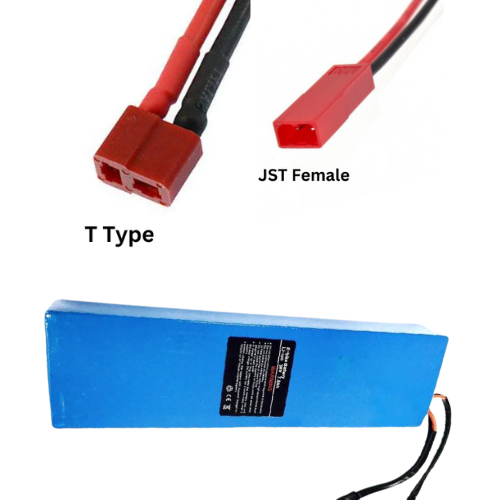

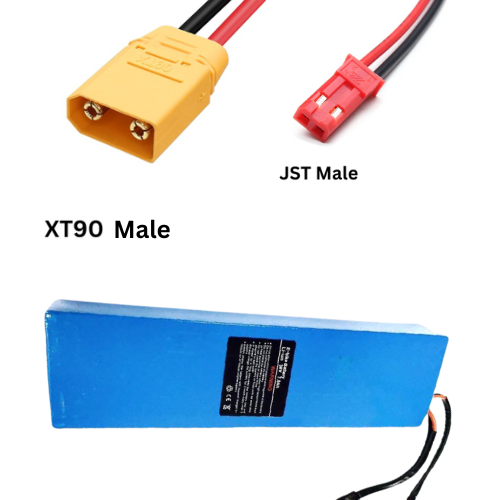

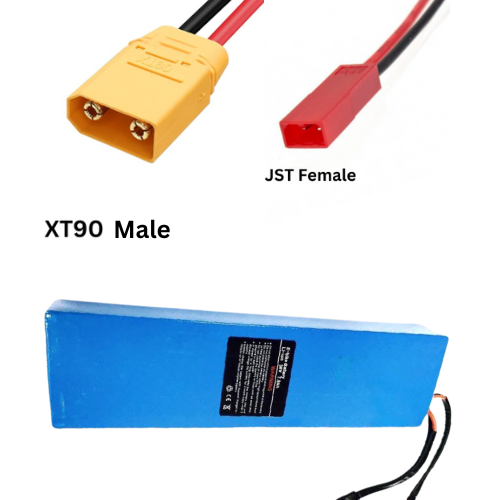

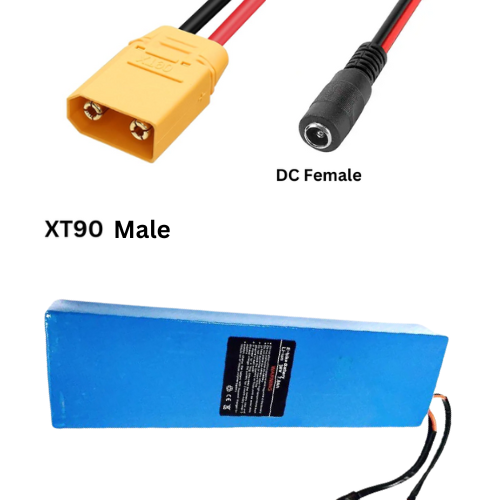

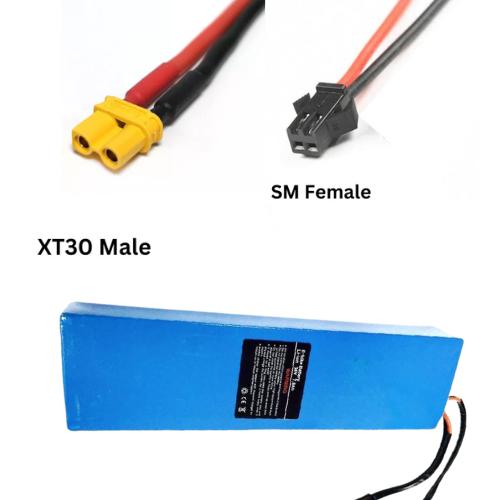

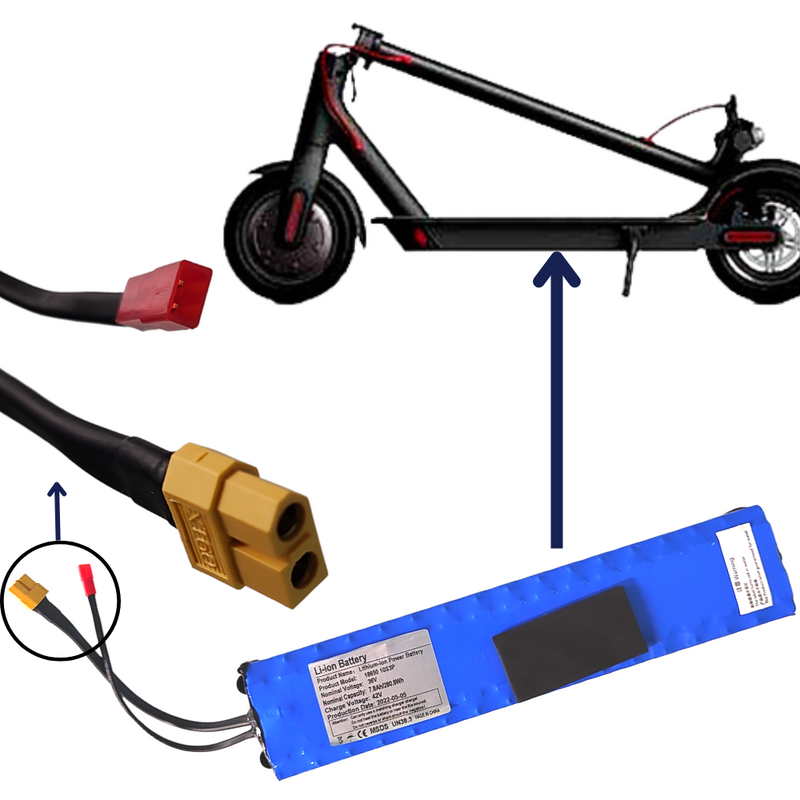

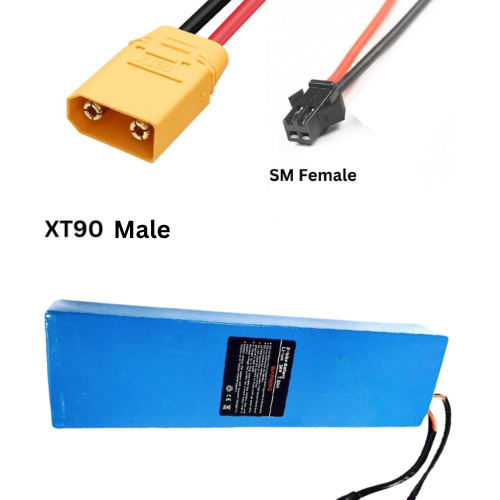

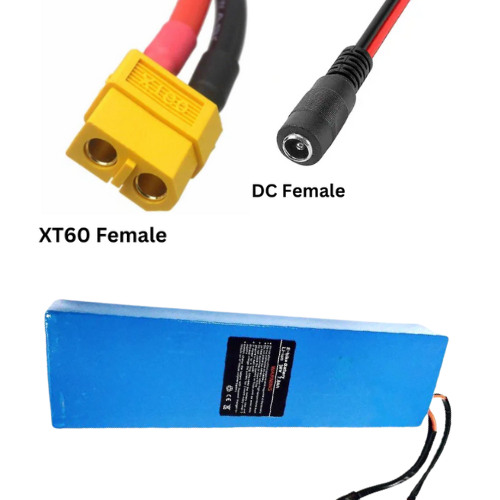

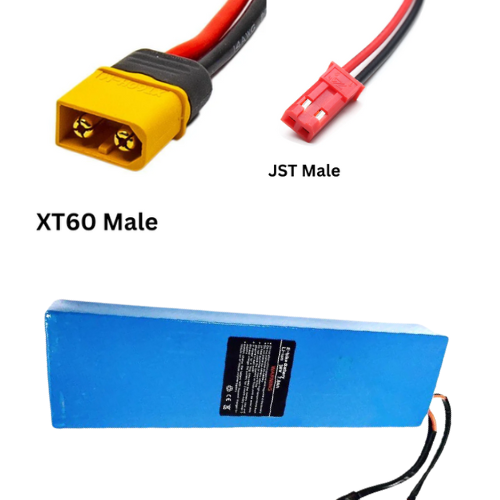

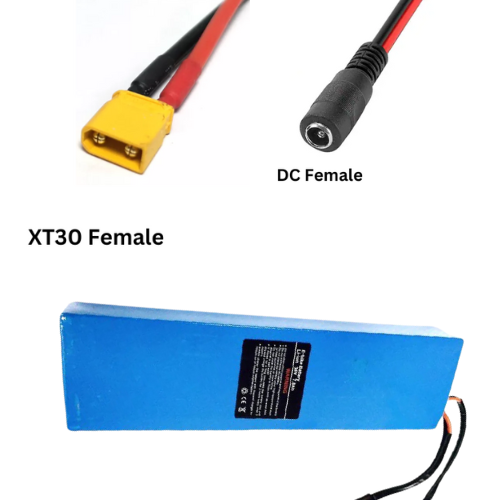

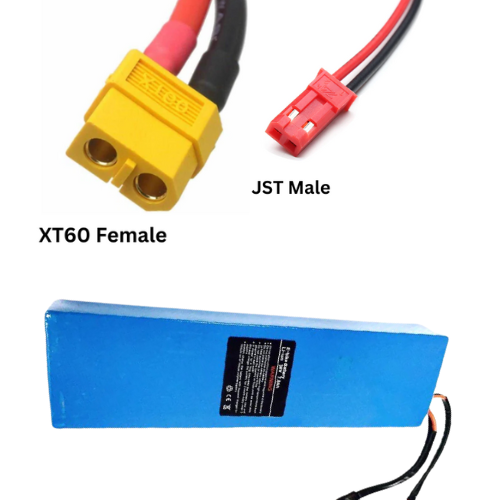

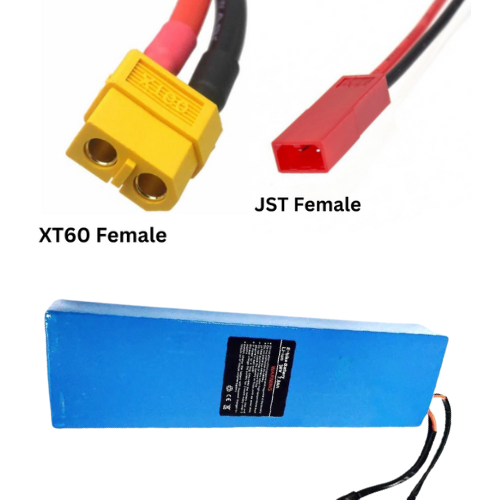

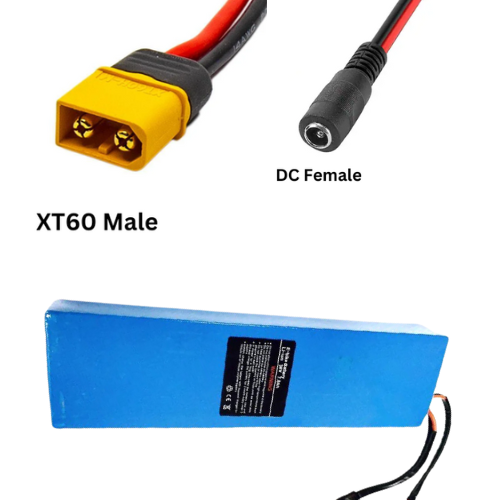

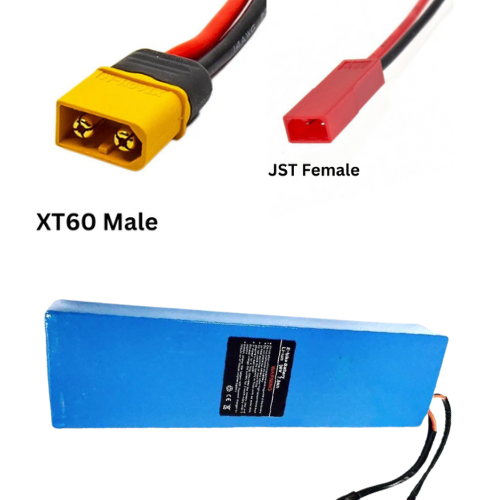

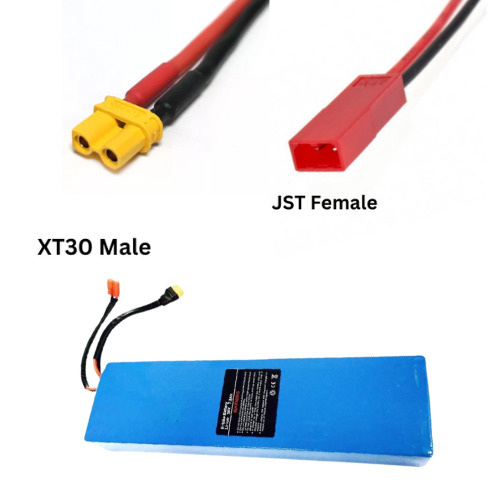

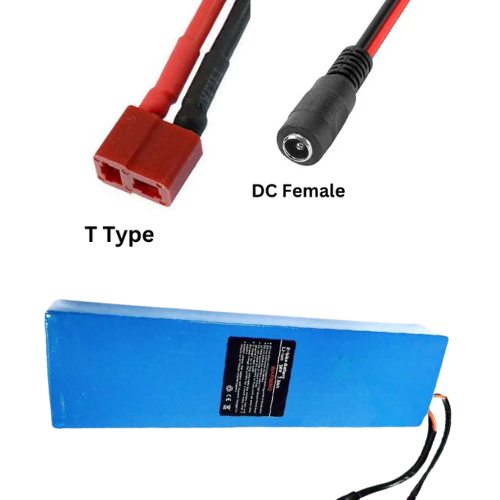

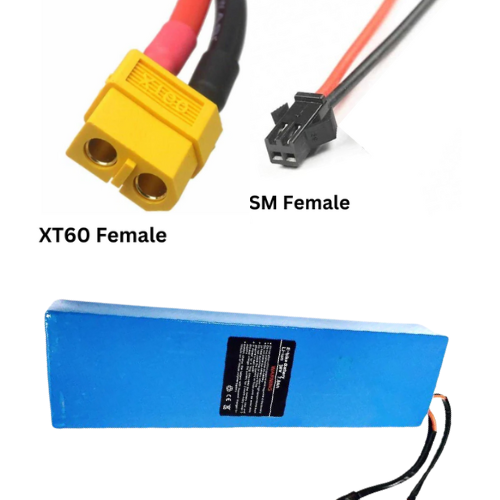

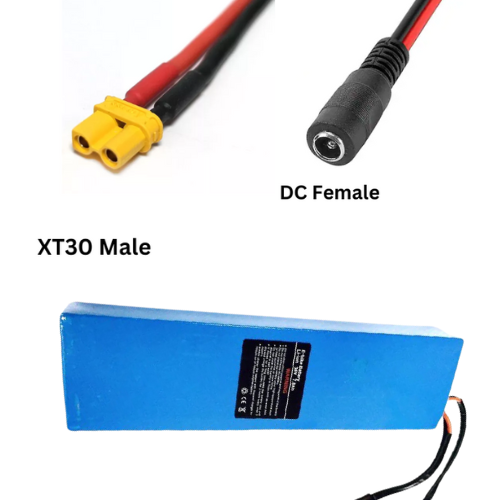

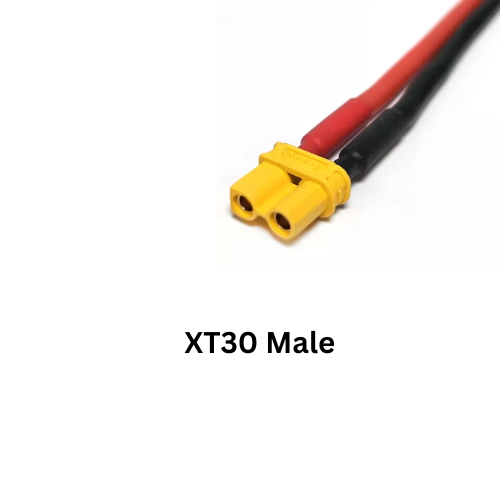

IF connector type not listed, please contact us

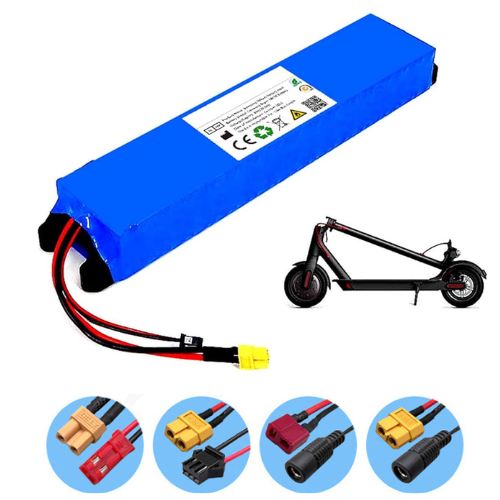

Battery model: HR-15 fit 10S3P / 36V / 10.4 Ah / 374.4Wh
Nominal voltage: 36V
Charging voltage: 42V
BMS rated current: the discharging current of different ports is 20A, and the charging current is 5A
BMS function: overcharge, overdischarge, overcurrent, short circuit protection.
Output voltage range: 28V-42V
Discharge cut-off voltage: 28V
Charging cut-off voltage: 42V
Charging method: CC-CV
Maximum charging current: 5A
Charging temperature: 0-45°C
Discharge temperature: -10-60℃
Storage temperature: -20-45°C (3 months)
Cycle life: 80% DOD after 500 cycles

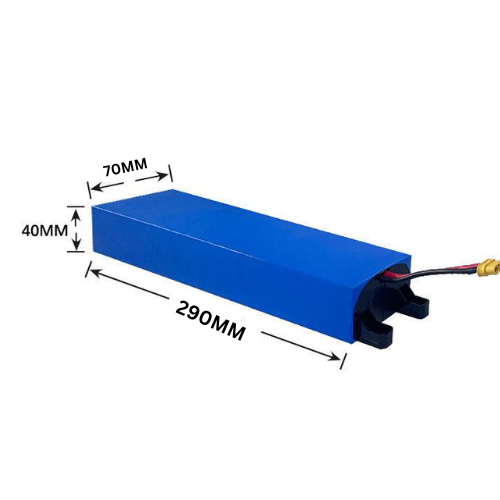

Size: 290mm x 70mm x 40mm
Packing: blue heat shrinkable PVC
