[TB-09] RELIFE Charging Port Tester

Charging Port Tester

• Internal Battery | Ultra-long Standby | Intelligent Automatic Detection | HD Display
• Supports IP and Android Models
• Type-C & Lightning Device Detection for Various Brands of Mobile Phones and Computers
• Intelligent Automatic Detection

How It Works:

1. Turn off the phone, then press the power button to turn on the tester.
2. Connect the tester to the phone’s charging port. The device will start automatic detection.
3. Press the corresponding interface button for re-inspection.

• Automatically Lock Charging Fault Point: The tester can automatically read the diode characteristic value corresponding to the USB connection and diagnose and locate any fault in the USB interface based on that value.

• High-Definition Display: Small screen with multiple information display, making measurement values visible at a glance, saving time during testing.

• Smart Sleep Mode: The tester automatically shuts down after 2 minutes of inactivity during testing.

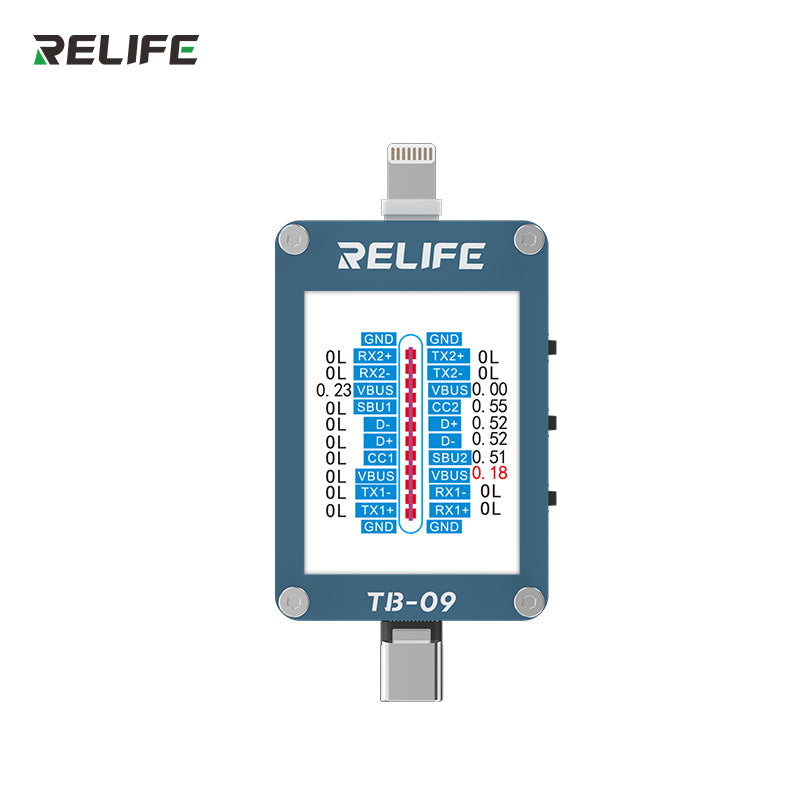

Measurement and Result Presentation:

• Detection value of 0.00 indicates a short circuit.
• OL indicates an open circuit.
• Red detection value indicates an abnormal PN value.

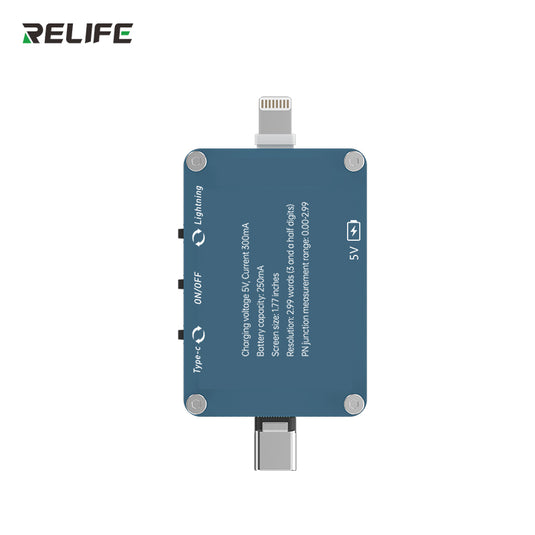

Specifications:

• Resolution: 2.99 characters (3.5 digits)
• PN Junction Measurement Range: Charging Voltage | Current | Battery Capacity
• Screen Size: 1.77 inches
