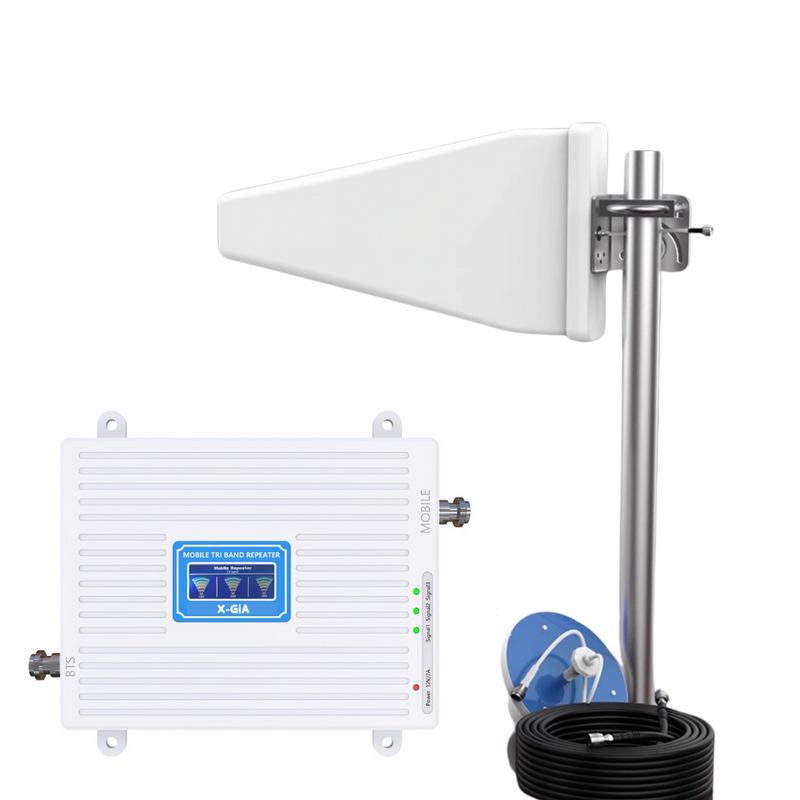

Repeater Rural Bush Home Antenna Signal Booster KIT 3G / 4G / 5G TELSTRA

The SOONGIA REPEATER Rural Bush Home Antenna Signal Booster KIT 3G / 4G / 5G TELSTRA is designed to amplify weak cellular signals in rural and bush areas, specifically for the Telstra network in Australia. It aims to improve call quality, data speeds, and reduce dropped calls. It is an excellent cost-effective alternative to Cel-Fi.

Model：AX-1870

Key Features

• Multi-band support: Supports 4G, and potentially 5G frequencies for Telstra.

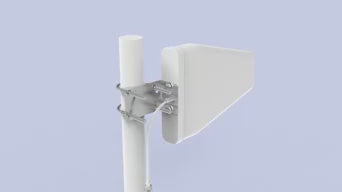

• High-gain outdoor antenna: Captures weak signals from Telstra cell towers over long distances.
• Indoor coverage: Can be configured with 1-4 indoor antennas to provide coverage for up to 1200 square meters.
• Powerful amplifier: Boosts weak signals to provide strong indoor reception.
• Intelligent LED display: Shows signal strength and system status.
• AGC (Automatic Gain Control) function: Prevents self-oscillation and interference with cell towers.
• FILER (Filter) technology: Reduces noise and radiation.
• Wide compatibility: Works with Telstra, Optus, and Vodafone networks.
• Easy installation: Includes quick installation guide.

Product Specifications

• Head: N-type female
• Brand: SOONGIA
• Material: Metal shell
• Size: 165*110*20mm
• Cable：10-meter outdoor cable and 3-meter indoor cable
• Power supply: DC12V 2A
• Operating temperature: -5°C~40°C
• Weight: Approx. 560g
• Supported antennas: 1-4
• Supported carriers: Telstra, Optus, Vodafone
• Network: 3G , 4G+5G

Installation Guide

1. Install the outdoor antenna in a high location with a clear view of the sky.
2. Connect the outdoor antenna to the booster using the provided cable.
3. Install the indoor antenna(s) in the areas where you need improved signal.
4. Connect the indoor antenna(s) to the booster using the provided cables.
5. Connect the power adapter to the booster and plug it into an outlet.

Additional Notes

• The effectiveness of the signal booster depends on the strength of the existing signal and the distance from the cell tower.
• It may be necessary to experiment with the placement of the outdoor antenna to find the best location for signal reception.
• If you are experiencing any problems with the signal booster, please contact the manufacturer for support.
