[YCS MINI S] YCS Repair Expert Special Edition Infrared Thermal Imager Thermal Imaging Camera

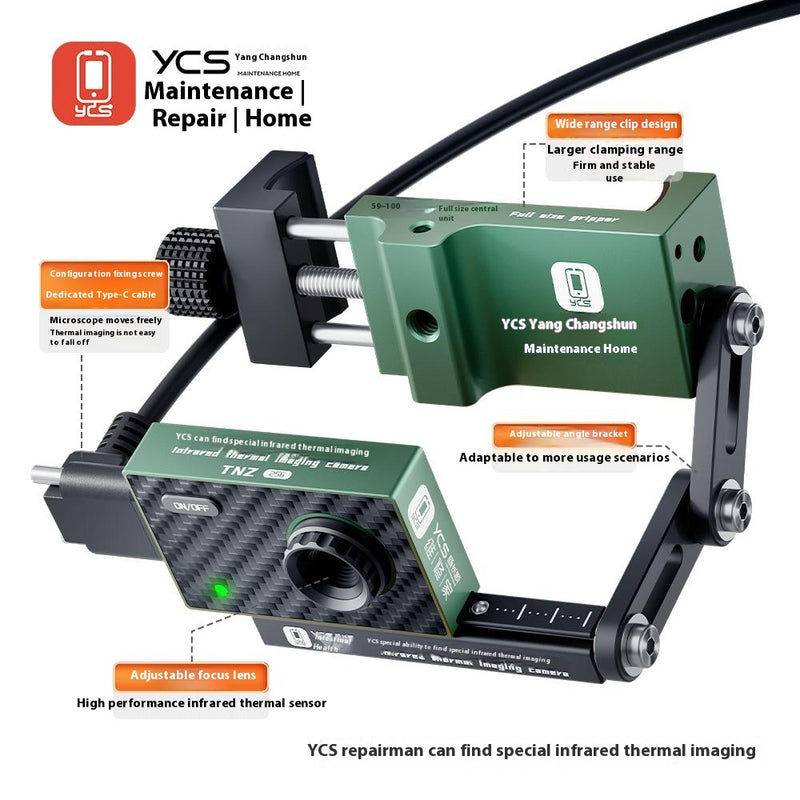

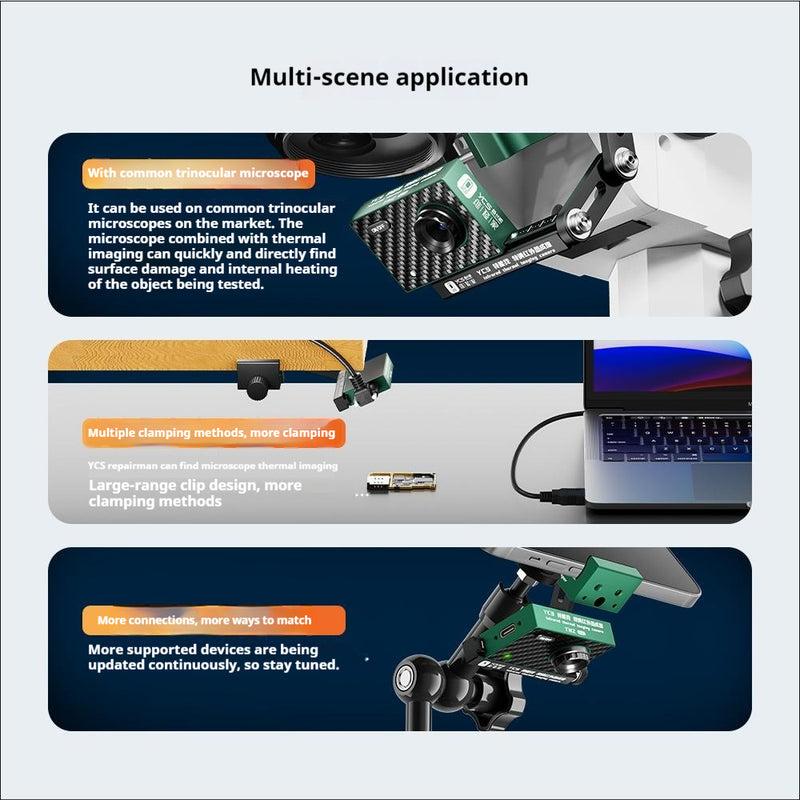

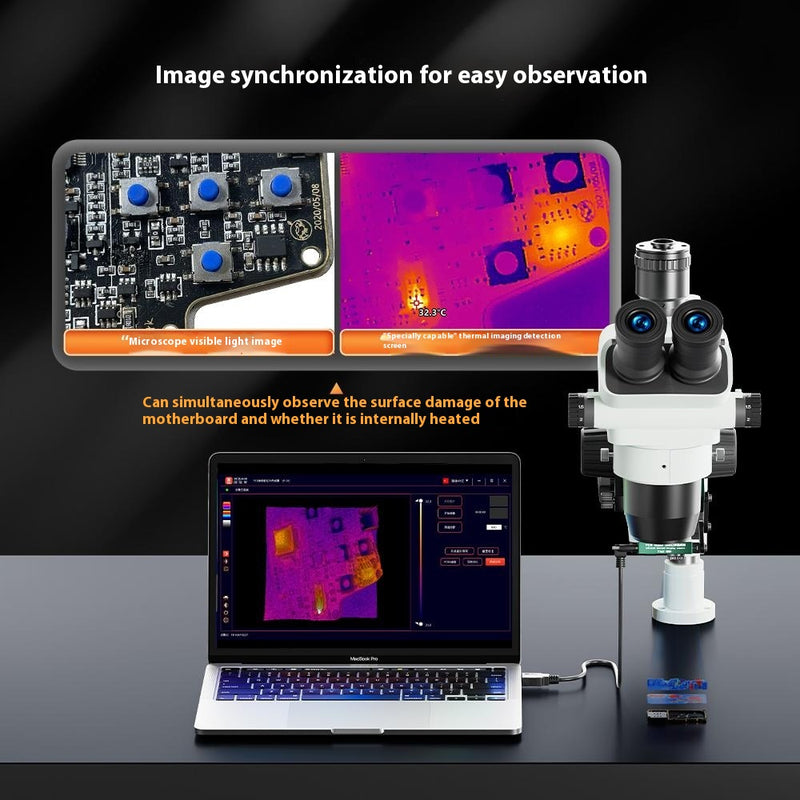

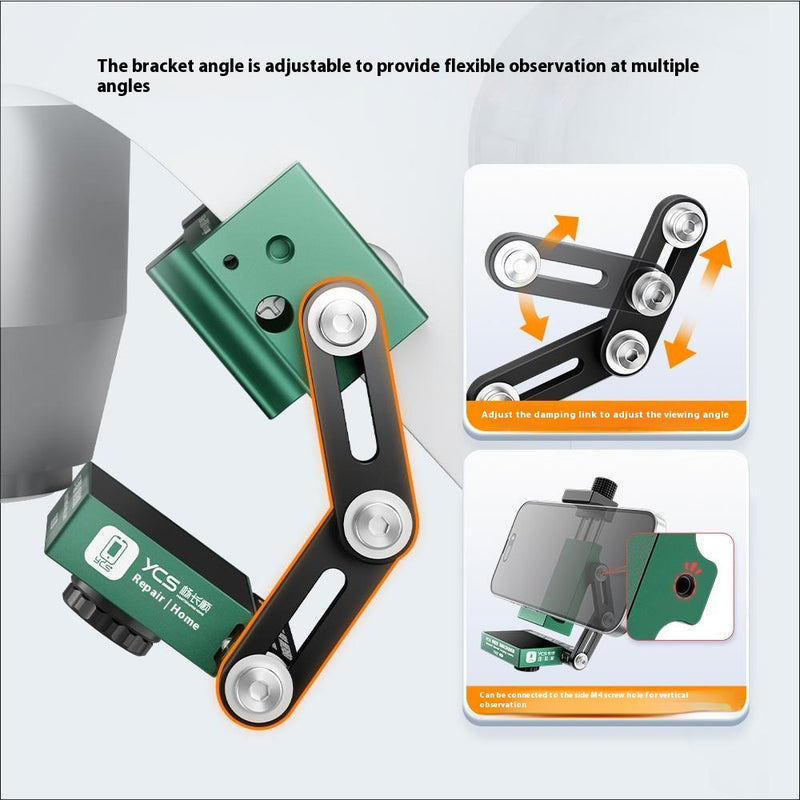

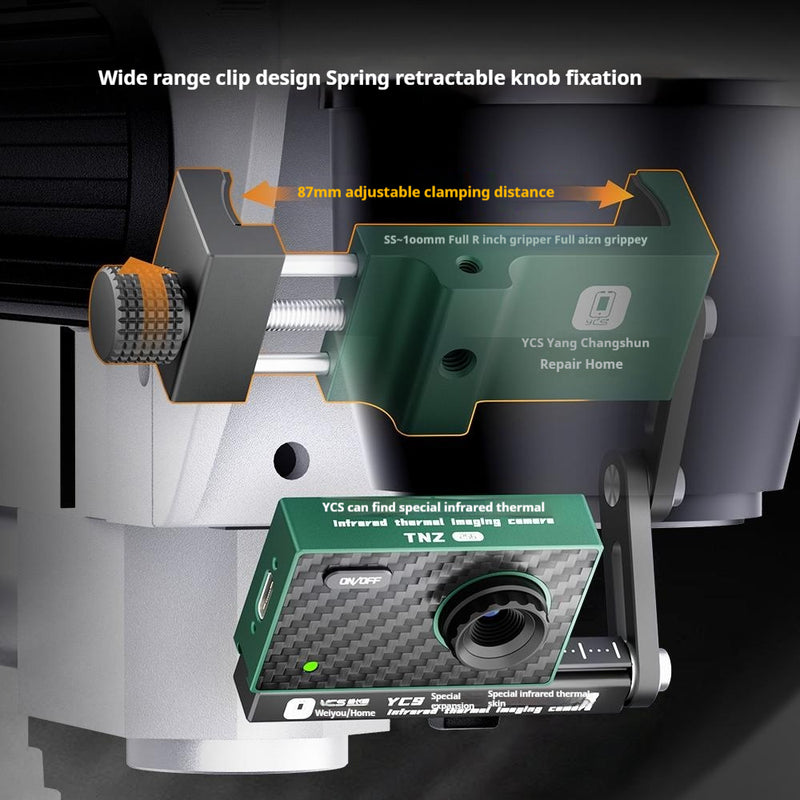

This thermal imaging camera is specifically designed for mobile phone repair, recommended by the YCS Repair Expert team led by the renowned repair master, Yang Changshun. It enables quick fault detection, accurately pinpointing issues, making it an essential tool for mobile phone repairs. With a unique fixed clamp design, it can be easily attached to a microscope, eliminating the need to move the motherboard during repairs and greatly improving convenience. Unlike other thermal imaging cameras that can cost thousands, this model is highly affordable, offering a cost-effective solution for professionals.

Product Specifications

• Brand: YCS Repair Expert
• Name: YCS Repair Expert Special Edition Infrared Thermal Imager
• Input Voltage: 5V
• Temperature Range: -20°C to 120°C

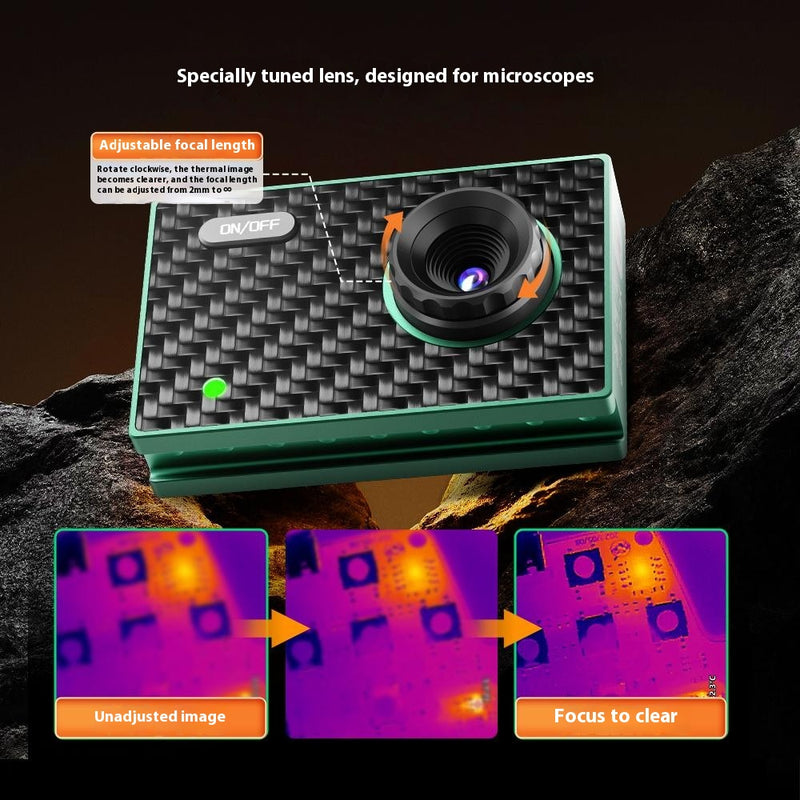

• Lens Type: Zoom Lens
• Resolution: 49152 effective temperature points
• Product Weight: 142.2g
• Port Type: Type-C
• Focal Distance: 2mm to infinity
• Cable Type: Type-C Cable, 1500mm
• Package Size: 18412052mm
• Package Weight: 289g
