SONY PS5 Teardown and Repair Guide

SONY PS5 Teardown and Repair Guide

PS5 Teardown and Repair Guide

The PlayStation 5 has been on the market for some time now, and as with any electronic device, certain issues may arise. Let's delve into a teardown to explore what repairs we can potentially undertake ourselves.

Opening the Shell

Sony designed the PS5 with a user-replaceable SSD slot, making it relatively easy to open the console. To remove the outer shell, gently lift the top and slide it downwards.It may be a bit tight the first time due to the strong engineering plastic.

Accessing the Internals

Once the shell is removed, you'll encounter various screws. While the SSD slot uses standard Phillips-head screws (PH1), most others require a specialized T8H Torx screwdriver. If you don't have one, consider purchasing a GTN30 Screwdriver Set.

Disassembly Process

  • Remove all screws: Carefully remove all screws and label them to avoid mix-ups during reassembly.
  • Disconnect cables: Detach the disk power and data cables.
  • Remove the disk box: This is a common failure point, so if your PS5 is having trouble reading discs, this might be the culprit.
  • Remove the top cover: Unscrew all T8H screws and lift the metal cover. Be cautious of the thermal paste underneath.

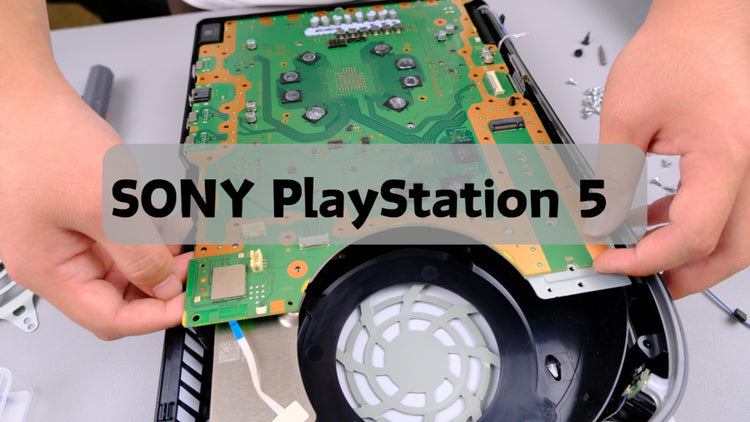

  • Remove the motherboard: Disconnect the antennas and gently lift the motherboard. Be mindful of the liquid metal on the CPU.
  • Remove the bottom cover: Repeat the process of removing the top cover.
  • Remove the heatsink: This is a heavy component, so be careful when lifting it.
  • Access the power supply: This is the most challenging component to replace and requires removing almost all other parts.

Important Notes:

  • Liquid Metal: Liquid metal is highly conductive and corrosive. Avoid contact with skin and ensure it doesn't spill onto other components.
  • Static Electricity: Discharge any static electricity before handling electronic components.
  • Reassembly: Follow the disassembly steps in reverse order, ensuring all components are securely fastened and cables are correctly connected.

Disclaimer: Disassembling your PS5 will void your warranty. Proceed with caution and at your own risk. If you're unsure about any step, seek professional help.

Additional Tips:

  • Watch video tutorials: Visual guides can be extremely helpful in understanding the disassembly process.
  • Take photos: Document each step with photos to aid in reassembly.
  • Work in a clean environment: Avoid dust and debris to prevent damage to delicate components.

By following these steps and exercising caution, you can potentially diagnose and repair certain issues with your PS5.
